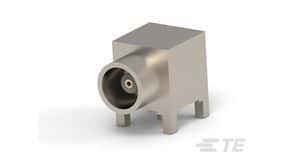

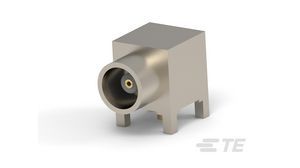

Right-angle, female RF coaxial connector designed for PCB mounting. Features a 50 Ohm impedance and operates from 0Hz to 6GHz with a maximum frequency of 6GHz. Constructed with a brass body plated in nickel, and copper contacts plated in gold. Offers a voltage rating of 335V, a maximum operating temperature of 165°C, and 500 mating cycles. Supplied in a tray package.
Frequency6GHz
Voltage Rating335V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 1061027-1 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 9mm |
| Dielectric Material | TFE |
| ELV | Compliant |
| Frequency | 6GHz |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 50R |
| Insertion Loss | 0.1dB |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, PCB |
| Number of Ports | 1 |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Right Angle |
| Package Quantity | 400 |
| Packaging | Tray |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Right Angle |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MCX |
| Termination | Solder |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
