Shielded RF coaxial connector for cable mounting, featuring a 50 Ohm impedance and a maximum operating frequency of 6GHz. Constructed with copper and steel conductors, gold-plated copper contacts, and PTFE dielectric material. This component offers a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
Frequency6GHz
PackageSMD/SMT
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1064542-1 technical specifications.
General
Package/Case
SMD/SMT
Color
Blue
Conductor Material
Copper, Steel
Connector Type B
Cable
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
ELV
Compliant
Features
Shielded
Frequency
6GHz
Impedance
50R
Insulation Material
FEP
Lead Free
Lead Free
Length
20.1inch
Max Frequency
6GHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Cable
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Shielded
Wire/Cable Diameter
0.052inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1064542-1 Datasheet
Download the complete datasheet for TE Connectivity 1064542-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

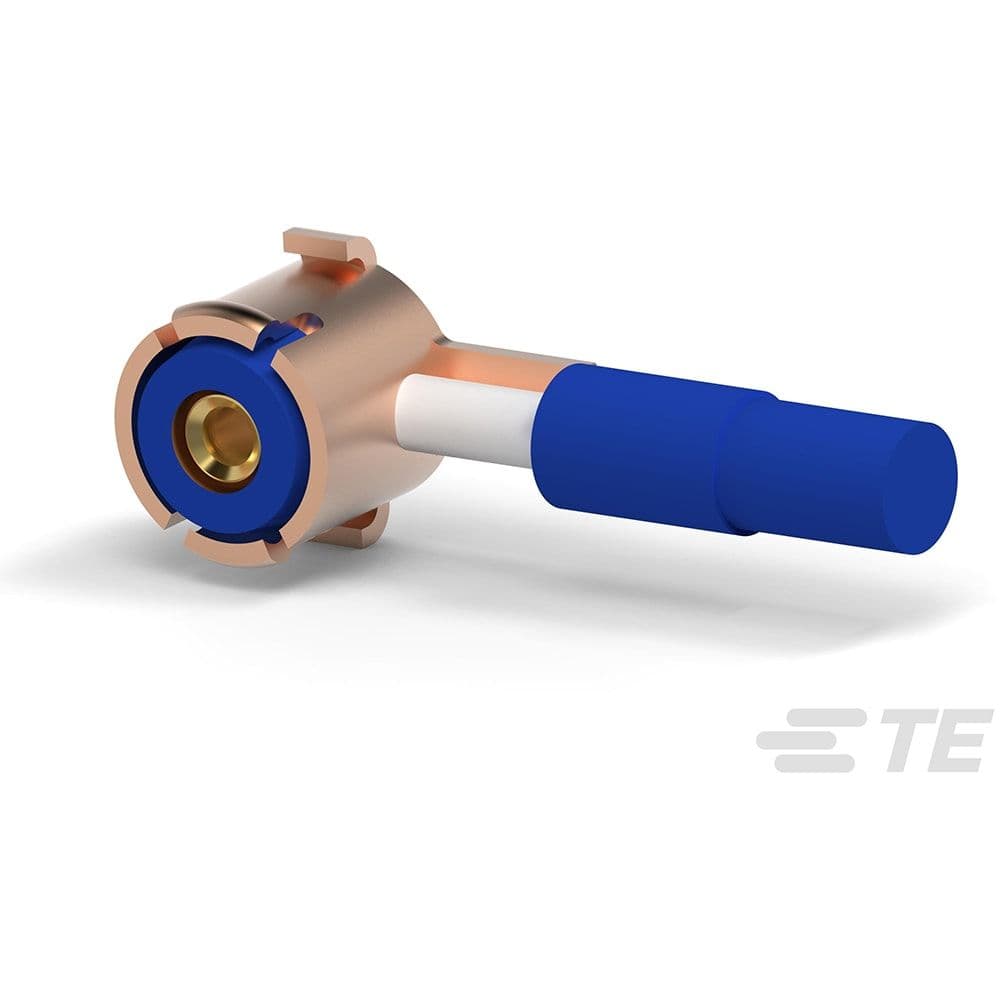

Product Images
