Female signal contact, straight orientation, for cable mounting. Features copper alloy with tin plating, designed for 0.64mm mating tab width and 20-24AWG wire gauge. Operates within a temperature range of -40°C to 248°C. RoHS compliant, ELV compliant, and packaged in tape and reel.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1123343-1 technical specifications.
General
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Type | Signal |
| Depth | 2.5mm |
| ELV | Compliant |
| Gender | Female |
| Insulation Diameter | 0.067inch |
| Length | 15.5mm |
| Mating Tab Width | 0.64mm |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | MULTILOCK 025 |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1123343-1 Datasheet
Download the complete datasheet for TE Connectivity 1123343-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

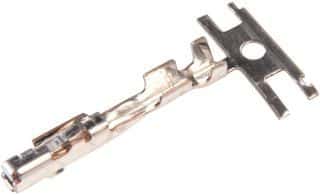

Product Images
