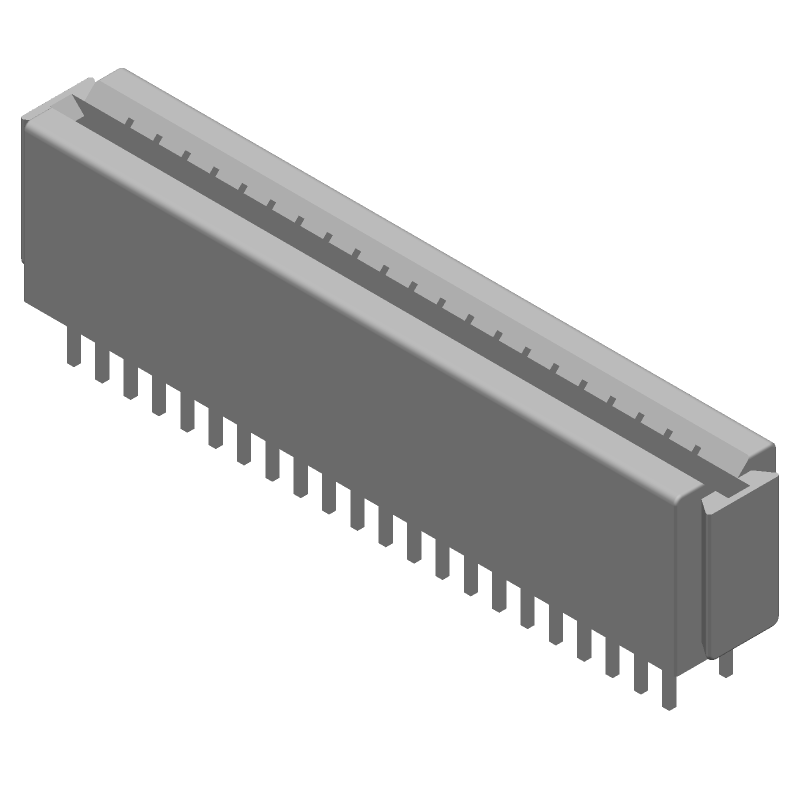

Standard density card edge connector with 22 positions and 2 rows, featuring a 2.54mm pitch and 5.08mm row spacing. Designed for 1.8mm card thickness, this straight, female connector utilizes gold and tin plated bronze contacts with a 3A current rating and 4.57mm contact post length. It offers with mating alignment and PCB mount retention, mounting vertically via through-hole termination with solder. The black PBT housing operates between -55°C and 85°C, with a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 119738-8 technical specifications.
General
| Card Thickness | 1.8mm |
| Color | Black |
| Connector System | Board-to-Board |
| Contact Current Rating | 3A |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Post Length | 4.57mm |
| Contact Retention | No (Without) |
| ELV | Non-Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 13.85mm |
| Housing Color | Black |
| Insulation Material | PBT |
| Lead Free | Not Applicable |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 6 |
| Packaging | Rail/Tube |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.54mm |
| RoHS Compliant | No |
| Row Spacing | 5.08mm |
| Series | AMP PACE |
| Termination | Solder |
| Underplate Material | Nickel |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 119738-8 Datasheet
Download the complete datasheet for TE Connectivity 119738-8 to view detailed technical specifications.
