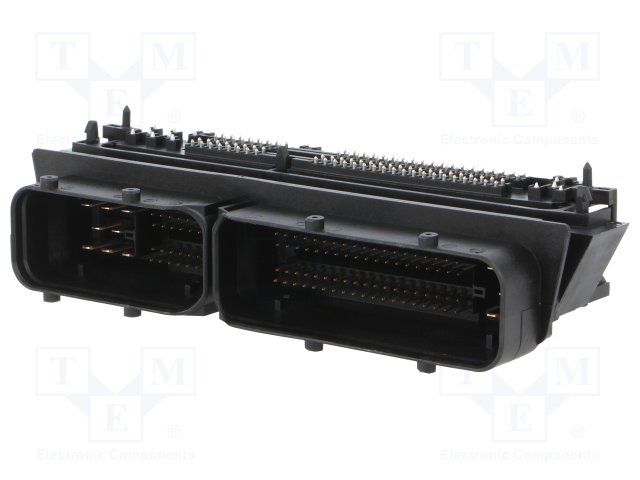

Right-angle, through-hole header for board-to-board interconnection, featuring 121 positions across 4 rows with a 2.54mm pitch. This male connector utilizes copper alloy contacts with tin plating for power applications, offering 108 signal positions. Constructed with black nylon insulation, it operates within a temperature range of -40°C to 248°C and is lead-free and RoHS compliant. Designed for 1.6mm PCB thickness, it includes PCB mount alignment and retention features.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1241434-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Circuit Application | Power |
| Color | Black |
| Contact Finish - Mating | TIN |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 45mm |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 144mm |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 121 |
| Number of Rows | 4 |
| Number of Signal Positions | 108 |
| Orientation | Right Angle |
| Package Quantity | 72 |
| Packaging | Bulk |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | With |
| PCB Thickness | 1.6mm |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Sealable | Yes (With) |
| Series | Micro Quadlok |
| Shielding | Unshielded |
| Tab Thickness | 0.8mm |
| Tab Width | 0.025inch |
| Termination | Solder |
| Width | 45mm |
| RoHS | Compliant |
