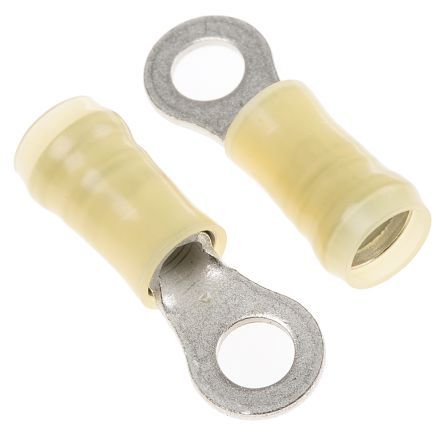

Yellow insulated ring terminal for 10-12 AWG wire, featuring a copper contact with silver and tin plating. This crimp-style terminal has a 0.207-inch stud diameter (M5) and a 0.039-inch tongue thickness. Constructed with a nylon insulation material and PVC, it supports insulated wire and has a 300V AC voltage rating. The terminal measures 1.09 inches in length with a 6.35mm insulation diameter and 0.248-inch wire/cable diameter.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 130171 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 130171 technical specifications.
| Color | Yellow |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| ELV | Compliant |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 6.35mm |
| Insulation Material | Nylon |
| Lead Free | Not Applicable |
| Length | 1.09inch |
| Material | Copper, Tin, PVC |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | PIDG |
| Stud Diameter | 0.207inch |
| Stud Size | M5 |
| Termination | Crimp |
| Tongue Thickness | 0.039inch |
| Voltage Rating (AC) | 300V |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Diameter | 0.248inch |
| RoHS | Compliant |
