Insulated wire pin terminal for 14-16 AWG copper wire, featuring a 0.8mm pin diameter and 2.92mm width. Constructed from copper with tin plating for reliable conductivity, this male terminal offers a 22.63mm overall length and 10.9mm pin length. The blue nylon insulation accommodates an insulation diameter of 0.17 inches. This RoHS and ELV compliant component is supplied in loose piece packaging.
Quick Jump:
Technical Specifications
TE Connectivity 131330 technical specifications.
General
Color
Blue
Contact Material
Copper, Tin
Contact Plating
Tin
ELV
Compliant
Gender
Male
Heavy Duty
No
Insulation
Insulated
Insulation Diameter
0.17inch
Insulation Material
Nylon
Lead Free
Not Applicable
Length
22.63mm
Material
Copper
Package Quantity
1000
Packaging
Loose Piece
Pin Diameter
0.8mm
Pin Length
10.9mm
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Series
PIDG
Terminal Material
Copper
Termination
Crimp
Width
2.92mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 131330 Datasheet
Download the complete datasheet for TE Connectivity 131330 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

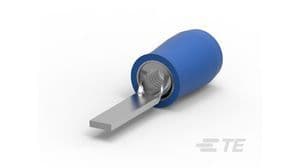

Product Images
