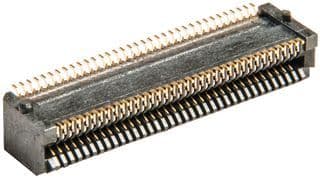

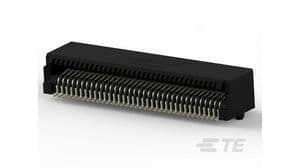

70-position, 2-row right-angle receptacle connector with gold-plated bronze contacts. Features a black, UL94 V-0 rated housing, operating temperature range of -40°C to 105°C, and a 120V AC maximum voltage rating. Termination is Surface Mount Device (SMD/SMT) with a 0.8mm pitch, suitable for tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1367337-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1367337-1 technical specifications.
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 7.4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Length | 31.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 120V |
| Mount | Surface Mount, Through Hole |
| Number of Contacts | 70 |
| Number of Ports | 1 |
| Number of Positions | 70 |
| Number of Positions Loaded | 70 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 480 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 5.9mm |
| RoHS | Compliant |
