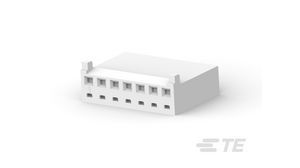

7 Pos Female Socket Connector, 2.54mm Pitch, 7A, 250V, Nylon

TE Connectivity

1375820-7

Name: 1375820-7 TE Connectivity
Brand: TE Connectivity
SKU: 1375820-7

7 Pos Female Socket Connector, 2.54mm Pitch, 7A, 250V, Nylon

7-position, single-row female socket receptacle for wire-to-wire connector systems. Features a 2.54mm pitch, 6.5A current rating, and 250V voltage rating. Constructed with a white nylon body, bronze contacts, and a straight, free-hanging, cable mount orientation. Operating temperature range from -67°C to 221°C, with UL94 V-0 flammability rating and RoHS compliance.

Voltage Rating250V

Current Rating6.5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1375820-7 technical specifications.

General

Approvals	CSA
Body Material	Nylon
Color	White
Connector System	Wire-to-Wire
Contact Current Rating	7A
Contact Gender	Female
Contact Material	Bronze
Contact Retention	No (Without)
Contact Type	Female Socket
Current Rating	6.5A
Depth	6.6mm
Diameter	18.3mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.26inch
Housing Color	Natural
Lead Free	Lead Free
Length	18.29mm
Material	Polymer
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	7
Number of Positions	7
Number of Rows	1
Orientation	Straight
Package Quantity	1
Packaging	Bulk
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	CST-100 II
Shrouded	No (Without)
Strain Relief	No (Without)
Termination	Crimp
Voltage Rating	250V
Width	12.95mm
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	22AWG
Wire/Cable Gauge	22AWG
