This female interconnection device features a straight, 2-position, 1-row configuration with a 2.54mm pitch. Constructed with a copper body and gold-plated copper contacts, it offers a 3A current rating and 250V voltage rating. The device is UL94 V-0 flammability rated and RoHS compliant, with a green housing.
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
TE Connectivity 142270-5 technical specifications.
General
| Body Material | Copper |
| Color | Green |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 6.3mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 6.3mm |
| Housing Color | Green |
| Lead Free | Not Applicable |
| Length | 5.08mm |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1400 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPMODU MOD IV |
| Voltage Rating (AC) | 250V |
| Width | 2.54mm |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 142270-5 Datasheet
Download the complete datasheet for TE Connectivity 142270-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

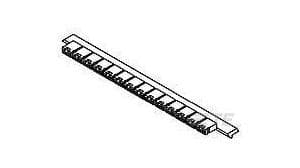

Product Images
