5-position, 1-row wire to board housing connector featuring straight orientation and a 2.54mm pitch. This female socket connector utilizes IDC termination for discrete 26AWG wires, offering a 3A contact current rating with bronze contacts plated in tin. Designed for free hanging, cable mounting, it operates within a -40°C to 100°C temperature range and supports up to 500V. The blue housing has a height of 8mm and length of 10.16mm, with an insulation diameter of 0.039 inches. This RoHS compliant component is UL94 V-0 flammability rated.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 144271-5 technical specifications.
General
| Contact Current Rating | 3A |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 8mm |
| Housing Color | Blue |
| Insulation Diameter | 0.039inch |
| Lead Free | Not Applicable |
| Length | 10.16mm |
| Mating Alignment | No (Without) |
| Mating Connector Lock | No (Without) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Supply Voltage | 500V |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| PCB Mount Retention | Without |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | HE13/HE14 |
| Strain Relief | No (Without) |
| Termination | IDC |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 144271-5 Datasheet
Download the complete datasheet for TE Connectivity 144271-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

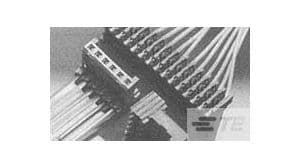

Product Images
