3-position, single-row, wire-to-wire connector with male pin contacts. Features a straight, panel-mount design with snap-in mounting and mating alignment. Constructed with a black nylon housing and brass contacts, rated for 5A and 250V AC. Operates within a temperature range of -40°C to 221°C, with UL94 V-0 flammability rating and VDE testing.
Voltage Rating250V
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
TE Connectivity 1445048-3 technical specifications.
General
Approvals
CSA
Body Material
Nylon
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Material
Brass
Contact Retention
No (Without)
Contact Type
Male Pin
Current Rating
5A
Depth
16.89mm
Flammability Rating
UL94 V-0
Gender
Male
Height
16.89mm
Housing Color
Black
Length
9.85mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Tray
Panel Thickness
0.091inch
Pitch
0.118inch
RoHS Compliant
Yes
Sealable
No (Without)
Series
Micro MATE-N-LOK
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
Yes
Voltage Rating
250V
Width
3.86mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1445048-3 Datasheet
Download the complete datasheet for TE Connectivity 1445048-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

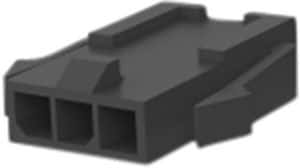

Product Images
