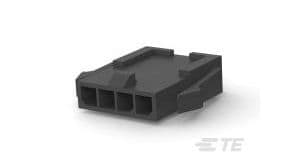

Four-position, straight, male wire housing connector for wire-to-wire applications. Features brass male pin contacts with a 5A current rating and 250V voltage rating. Black housing with 3mm pitch, designed for panel mount with snap-in retention. Operating temperature range of -40°C to 221°C, with UL94 V-0 flammability rating. Tray packaged, 1000 units per package.
Voltage Rating250V
Current Rating5A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
TE Connectivity 1445048-4 technical specifications.
General
| Approvals | CSA |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Retention | No (Without) |
| Contact Type | Male Pin |
| Current Rating | 5A |
| Depth | 16.89mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 16.89mm |
| Housing Color | Black |
| Length | 12.85mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Snap in |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tray |
| Panel Thickness | 0.091inch |
| Pitch | 0.118inch |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Micro MATE-N-LOK |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 250V |
| Width | 3.86mm |
Compliance
| RoHS | Compliant |
