Female signal contact for cable mounting, featuring a straight orientation and standard style. This crimp termination component is constructed from bronze with gold plating over nickel underplate, offering a 4A current rating and 250V voltage rating. Designed for discrete wire, it accommodates wire gauges from 22AWG to 26AWG and has an insulation diameter of 1.65mm. Operating within a temperature range of -67°C to 221°C, this RoHS compliant component is supplied in a bag of 1000.
Voltage Rating250V
Current Rating4A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1445336-2 technical specifications.
General
Contact Current Rating
4A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Contact Retention
Yes (With)
Contact Style
Standard
Contact Type
Signal
Current Rating
4A
Depth
2.67mm
ELV
Compliant
Gender
Female
Insulation Diameter
1.65mm
Lead Free
Lead Free
Length
11.43mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Plating Thickness
0.38um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CST-100 II
Shielding
Unshielded
Termination
Crimp
Underplate Material
Nickel
Voltage Rating
250V
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
26AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1445336-2 Datasheet
Download the complete datasheet for TE Connectivity 1445336-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

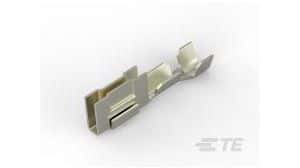

Product Images
