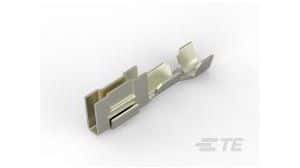

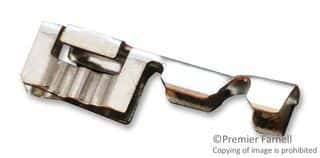

Female signal contact for cable mounting, featuring a straight orientation and crimp termination. This component offers a 4A current rating, gold plating over nickel underplate, and a bronze contact material. Designed for discrete wire, it accommodates wire gauges from 22AWG to 26AWG with an insulation diameter of 1.65mm. Operating temperature range is -67°C to 221°C.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1445336-3 technical specifications.
General
Contact Current Rating
4A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Contact Retention
Yes (With)
Contact Style
Standard
Contact Type
Signal
Depth
2.67mm
Gender
Female
Insulation Diameter
1.65mm
Length
11.43mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Plating Thickness
0.76um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CST-100 II
Shielding
Unshielded
Termination
Crimp
Underplate Material
Nickel
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
