50-position, 2-row male connector for signal applications, featuring a 0.05-inch pitch and straight, surface-mount orientation. This black, unshielded component offers a 500mA current rating per contact, with brass contacts plated in gold, tin, and lead. Constructed with UL94 V-0 flammability rating and nickel underplate, it is designed for solder termination.
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 146839-1 technical specifications.
General
Circuit Application
Signal
Color
Black
Connector System
Cable-to-Board
Contact Current Rating
500mA
Contact Material
Brass
Contact Plating
Gold, Tin, Lead
Current Rating
500mA
Depth
14mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Length
44.77mm
Mount
Surface Mount
Number of Contacts
50
Number of Positions
50
Number of Rows
2
Orientation
Straight
Package Quantity
11
Packaging
Rail/Tube
Pitch
0.05inch
Radiation Hardening
No
RoHS Compliant
No
Sealable
No (Without)
Shielding
Unshielded
Termination
Solder
Underplate Material
Nickel
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 146839-1 Datasheet
Download the complete datasheet for TE Connectivity 146839-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

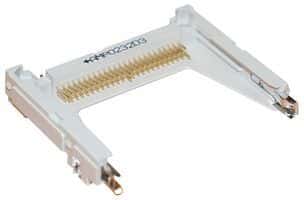

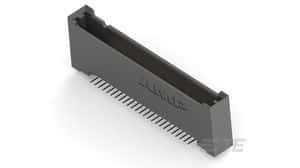

Product Images
