40-position, 2-row, 10-column female header with a 2.5mm pitch for signal applications. Features gold-plated bronze contacts with 0.76um plating, a 700mA current rating, and a 250V voltage rating. This straight, vertical PCB mount component has a grey housing, operates from -65°C to 105°C, and is UL94 V-0 flammability rated.
Voltage Rating250V
Current Rating700mA
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1469025-1 technical specifications.
General
| Circuit Application | Signal |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 700mA |
| Depth | 15.43mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Grey |
| Length | 24.9mm |
| Make First / Break Last | No |
| Max Current Rating | 700mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Columns | 10 |
| Number of Contacts | 40 |
| Number of Pairs | 20 |
| Number of Positions | 40 |
| Number of Rows | 4 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.5mm |
| Plating | Gold |
| Plating Thickness | 0.76um |
| RoHS Compliant | No |
| Sealable | No (Without) |
| Selectively Loaded | No (Without) |
| Series | Z-Pack HM-ZD |
| Shielding | Unshielded |
| Termination | Through Hole |
| Voltage Rating | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 1469025-1 Datasheet
Download the complete datasheet for TE Connectivity 1469025-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

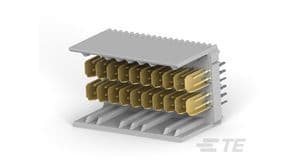

Product Images
