81-position, 3-row hybrid rectangular connector for signal applications. Features a male pin contact type and a wire-to-device connector system with a 2.54mm pitch. This free-hanging, cable-mount connector offers a straight orientation and is sealable. Operating temperature range from -40°C to 248°C with a maximum voltage rating of 250V AC. Constructed with a black housing and a UL94 HB flammability rating.
MountingFree Hanging, Cable
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 1473244-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Black |
| Connector System | Wire-to-Device |
| Contact Type | Male Pin |
| Depth | 31mm |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Height | 1.22inch |
| Housing Color | Black |
| Hybrid Connector | Yes |
| Lead Free | Not Applicable |
| Length | 76.4mm |
| Mating Tab Width | 0.11inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 81 |
| Number of Positions | 81 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Polarized | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.173inch |
| Sealable | Yes (With) |
| Series | Micro Quadlok |
| Serviceable | Yes |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 1.472inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1473244-1 Datasheet
Download the complete datasheet for TE Connectivity 1473244-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

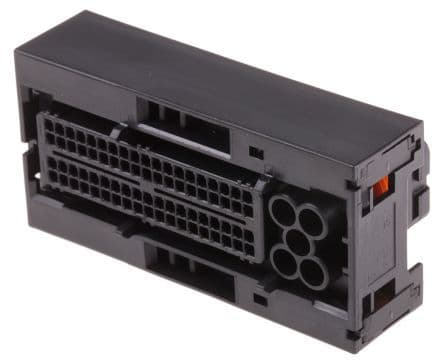

Product Images
