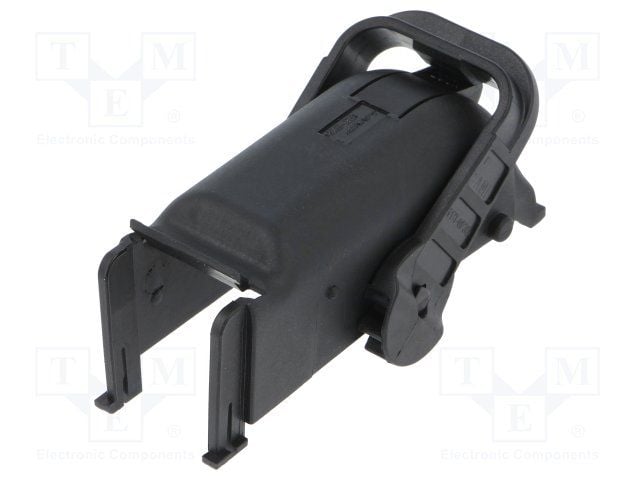

The Micro Quadlok 81-position wire-to-device connector is a general-purpose accessory from TE Connectivity. It features a black PBT housing with a depth of 35mm and a maximum operating temperature of 248°C. The connector is compliant with ELV regulations and is packaged in bags of 70 units. It is also RoHS compliant and has a strain relief feature.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1473250-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1473250-1 technical specifications.
| Body Material | PBT, Polybutylene |
| Color | Black |
| Connector System | Wire-to-Device |
| Depth | 35mm |
| ELV | Compliant |
| Height | 29.5mm |
| Housing Color | Black |
| Lead Free | Not Applicable |
| Length | 76mm |
| Material | PBT |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Number of Positions | 81 |
| Orientation | Straight |
| Package Quantity | 70 |
| Packaging | Bag |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | Micro Quadlok |
| Strain Relief | Yes (With) |
| Width | 76mm |
| RoHS | Compliant |
