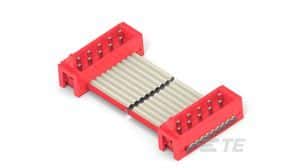

10-position, 2-row flat ribbon cable assembly featuring 1.27mm pitch connectors on both ends. This wire-to-board assembly utilizes 28AWG unshielded flat ribbon wire with a 0.93mm diameter and a 1.27mm cable pitch. The grey cable has a 100mm lead length and is terminated with keyed, red plug connectors. Operating temperature range is -40°C to 105°C.
Quick Jump:
Technical Specifications
TE Connectivity 1483353-1 technical specifications.
General
| Cable Pitch | 1.27mm |
| Color | Grey |
| Connector Pitch | 1.27mm |
| Connector Type A | Plug |
| Connector Type B | Plug |
| ELV | Compliant |
| Housing Color | Red |
| Keyed | Yes |
| Lead Length | 100mm |
| Length | 100mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Conductors | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Reach SVHC Compliant | Unknown |
| Series | Micro-MaTch |
| Shielding | Unshielded |
| Wire/Cable Diameter | 0.93mm |
| Wire/Cable Type | Flat, Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1483353-1 Datasheet
Download the complete datasheet for TE Connectivity 1483353-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
