Wire-to-board terminal block featuring 6 positions with a 5.08mm pitch. This general terminal block offers a 17.5A current rating per contact and a 300V voltage rating. Constructed with a black polyamide housing and brass contacts with tin plating, it supports solder termination and through-hole mounting. The straight orientation and interlock feature enhance its utility in various applications.
Voltage300V
Current17.5A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 1546074-6 technical specifications.
General
| Closed End | No (Without) |
| Color | Black |
| Connector System | Wire-to-Board |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 17.5A |
| Current Rating | 17.5A |
| Depth | 15mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Interlock | Yes (With) |
| Lead Free | Lead Free |
| Lead Length | 3.8mm |
| Length | 30.48mm |
| Material | Polyamide |
| Max Current Rating | 17.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Poles | 6 |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Operating Supply Voltage | 300V |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Box |
| Pin Length | 3.8mm |
| Pitch | 5.08mm |
| Plating | Brass |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Side Stackable | No (Without) |
| Tail Length | 0.15inch |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 12.5mm |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1546074-6 Datasheet
Download the complete datasheet for TE Connectivity 1546074-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

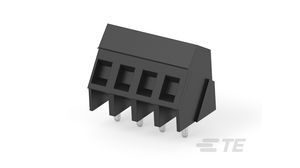

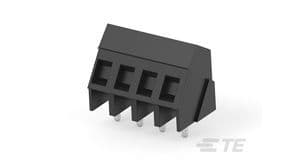

Product Images
