Green, 2-position, 3.5mm pitch wire-to-board terminal block with straight, through-hole mounting. Features copper alloy contacts with tin plating, rated for 12A and 300V. Includes a closed end and UL94 V-0 flammability rating. Designed for 16-28AWG wire.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
TE Connectivity 1546551-2 technical specifications.
General
| Closed End | Yes (With) |
| Color | Green |
| Connector System | Wire-to-Board |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 12A |
| Current Rating | 12A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | No (Without) |
| Max Current Rating | 12A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Rows | 1 |
| Operating Supply Voltage | 300V |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Carton |
| Pitch | 3.5mm |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Side Stackable | No (Without) |
| Tail Length | 3.5mm |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 28AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1546551-2 Datasheet
Download the complete datasheet for TE Connectivity 1546551-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

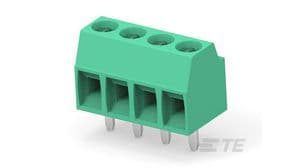

Product Images
