Shielded, female, straight modular jack connector with 8 positions loaded and 8 contacts. Features gold contact plating, IDC termination, and a panel mount design with flanges. Operates within a temperature range of -55°C to 105°C, boasting UL94 V-0 flammability rating and IP67, waterproof, dust-tight ratings.
MountingFlanges, Panel
Quick Jump:
Technical Specifications
TE Connectivity 1546908-1 technical specifications.
General
Contact Plating
Gold
Diameter
33.78mm
Direction
User Selectable
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Length
52.02mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Flanges, Panel
Number of Contacts
8
Number of Ports
1
Number of Positions Loaded
8
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bag
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
CPC 45
Shielding
Shielded
Termination
IDC
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1546908-1 Datasheet
Download the complete datasheet for TE Connectivity 1546908-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

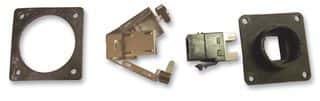

Product Images
