2-position right-angle bus bar connector for power applications. Features a copper alloy socket contact with tin plating and nickel underplate, rated for 170A. Thermoplastic insulation and housing in black, with UL94 V-0 flammability rating. Designed for board-to-bus bar connection with a 2mm PCB thickness and 5.68mm tail length. Compliant with ELV and RoHS standards, operating between -67°C and 221°C.
Current Rating170A
MountingPluggable
Quick Jump:
Technical Specifications
TE Connectivity 1551953-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Color
Black
Connector System
Board-to-Bus Bar
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Style
Socket
Current Rating
170A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
1.112inch
Housing Color
Black
Insulation Material
Thermoplastic
Length
31.4mm
Mating Alignment
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Pluggable
Number of Positions
2
Orientation
Right Angle
Packaging
Box
PCB Mounting Orientation
Right Angle
PCB Thickness
2mm
RoHS Compliant
Yes
Series
Crown Clip Junior
Tail Length
5.68mm
Termination
Clip
Underplate Material
Nickel
Width
12mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1551953-1 Datasheet
Download the complete datasheet for TE Connectivity 1551953-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

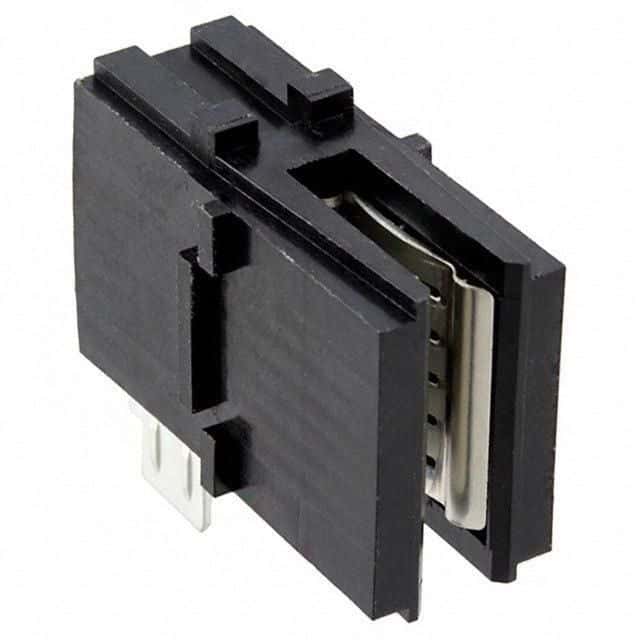

Product Images
