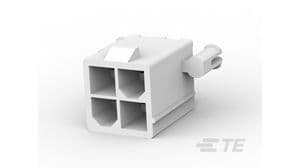

4-position, 2-row wire-to-board header with a 4.2mm pitch. Features male pin contacts with a 9A current rating and tin plating. Nylon insulation and a straight, vertical PCB mounting orientation with through-hole termination. Rated for 600V AC and a maximum operating temperature of 221°C. CSA approved and RoHS compliant.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1586039-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige
Connector System
Wire-to-Board
Contact Current Rating
9A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
9A
Depth
9.75mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
12.8mm
Housing Color
Natural
Insulation Color
Natural
Insulation Diameter
0.122inch
Insulation Material
Nylon
Lead Free
Lead Free
Length
9.6mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Power Positions
4
Number of Rows
2
Orientation
Straight
Package Quantity
375
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.063mm
Pitch
4.2mm
Plating Thickness
80um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Solder
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
0.386inch
Compliance
RoHS
Compliant
