8 Pos 9A 600V RA Header, Wire-to-Board, Through Hole, 4.2mm Pitch

TE Connectivity

1586043-8

Name: 1586043-8 TE Connectivity
Brand: TE Connectivity
SKU: 1586043-8

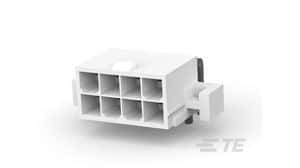

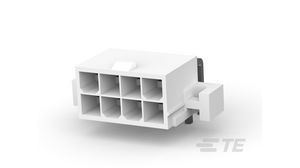

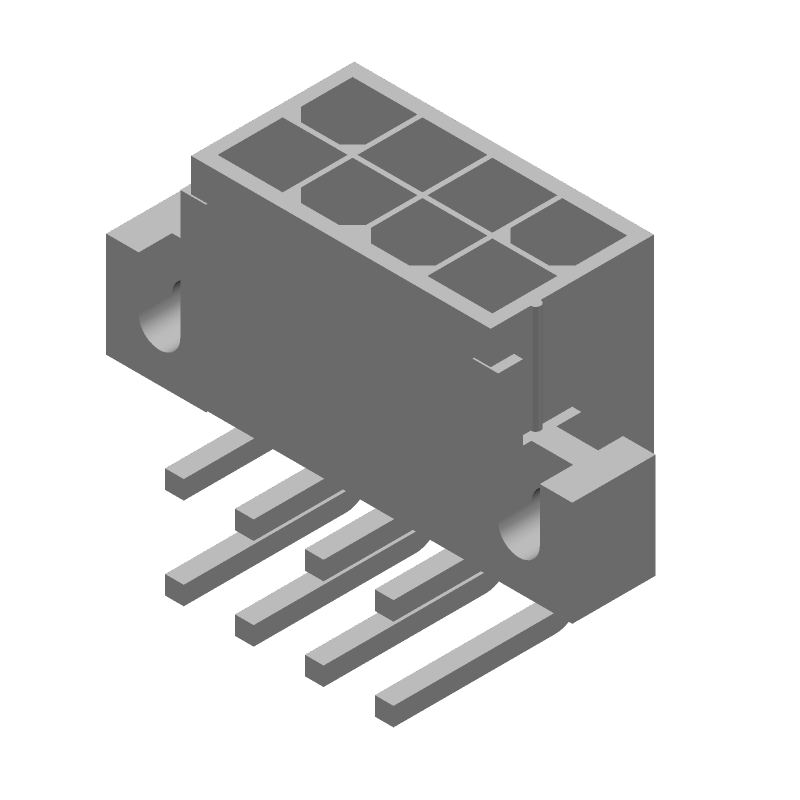

8 Pos 9A 600V RA Header, Wire-to-Board, Through Hole, 4.2mm Pitch

8-circuit, right-angle male pin header for wire-to-board applications. Features a 4.2mm pitch and 9A current rating with tin-plated brass contacts. Nylon housing in beige, with a maximum operating temperature of 221°C and a 600V AC voltage rating. Through-hole mounting with solder termination and mating alignment.

Voltage Rating600V

Current Rating9A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1586043-8 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Color	Beige
Connector System	Wire-to-Board
Contact Current Rating	9A
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9A
Depth	19.4mm
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Male
Height	9.8mm
Housing Color	Natural
Insulation Color	Natural
Insulation Diameter	3.2mm
Insulation Material	Nylon
Lead Free	Lead Free
Length	0.7187inch
Material	Brass
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	600V
Mount	Through Hole
Number of Circuits	8
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Power Positions	8
Number of Rows	2
Orientation	Right Angle
Package Quantity	70
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	0.063mm
Pitch	4.2mm
Plating Thickness	80um
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	4.2inch
Sealable	No (Without)
Selectively Loaded	No (Without)
Series	VAL-U-LOK
Termination	Solder
Voltage Rating	600V
Voltage Rating (AC)	600V
Width	0.5118inch
