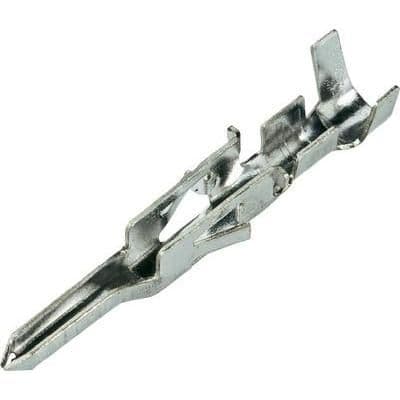

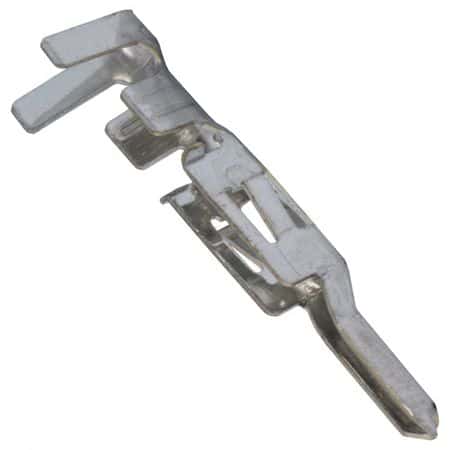

Male, straight, crimp termination connector contact for wire-to-wire power applications. Features brass construction with tin plating, rated for 9A current and 600V voltage. Accommodates wire gauges from 22AWG to 18AWG with an insulation diameter of 0.094 inches. Operates within a temperature range of -40°C to 221°C. RoHS compliant.
Voltage Rating600V
Current Rating9A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1586314-1 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 9A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 9A |
| Depth | 3.7mm |
| ELV | Compliant |
| Gender | Male |
| Height | 4.5mm |
| Insulation Diameter | 0.094inch |
| Lead Free | Lead Free |
| Length | 17.3mm |
| Material | Brass |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bag |
| Pitch | 4.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | VAL-U-LOK |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1586314-1 Datasheet
Download the complete datasheet for TE Connectivity 1586314-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
