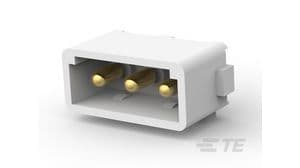

3 Pos Power Connector, Wire-to-Board, Male, 13A, 250V, Gold/Tin

TE Connectivity

1586514-2

Name: 1586514-2 TE Connectivity
Brand: TE Connectivity
SKU: 1586514-2

3 Pos Power Connector, Wire-to-Board, Male, 13A, 250V, Gold/Tin

3-position, wire-to-board male pin header assembly with a 5.08mm pitch and 13A current rating. Features gold-plated bronze contacts for power applications, a natural nylon housing, and through-hole mounting. Rated for 250V AC, operating between -67°C and 221°C, with UL94 V-2 flammability. Includes mating alignment and retention features.

Voltage Rating250V

Current Rating13A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1586514-2 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	12A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Retention	No (Without)
Contact Style	Pin
Contact Type	Male Pin
Current Rating	13A
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Male
Housing Color	Natural
Lead Free	Lead Free
Length	18.2mm
Material	Nylon
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Circuits	3
Number of Contacts	3
Number of Ports	1
Number of Positions	3
Number of Power Positions	3
Number of Rows	1
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	100
Packaging	Bag
PCB Mounting Orientation	Vertical
PCB Thickness	0.062mm
Pitch	5.08mm
Plating	Gold
Plating Thickness	1.18um
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Commercial MATE-N-LOK
Termination	Solder
VDE Tested	No
Voltage Rating	250V
Width	8.38mm
