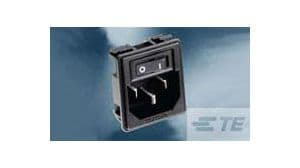

3-position, 3-pole male mains power connector with straight orientation. Features a 15A current rating and a maximum AC voltage rating of 250V. Designed for panel mounting with snap-in and screw options, utilizing quick connect termination. Operates within a temperature range of -10°C to 40°C and is RoHS compliant.
FrequencyN/A
PackageModule
Voltage250V
Current15A
Quick Jump:
Technical Specifications
TE Connectivity 15CUBS1 technical specifications.
General
Package/Case
Module
Current
15A
Current Rating
15A
Fuse
No
Gender
Male
Max Current Rating
15A
Max Operating Temperature
40°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in, Screw
Number of Contacts
3
Number of Poles
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
42
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
CU
Termination
Quick Connect
Type
Switch
Voltage
250V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 15CUBS1 Datasheet
Download the complete datasheet for TE Connectivity 15CUBS1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
