Rectangular receptacle connector featuring 12 Quadrax contacts, each with gold plating over a copper alloy contact material. This straight, panel-mount, through-hole component offers 12 positions across two rows with a 0.366-inch pitch and row spacing. It is polarized, lead-free, and RoHS compliant, with a nickel plating and solder termination.
MountingPanel, Through Hole
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 1604798-2 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Quadrax |
| Depth | 20.06mm |
| ELV | Non-Compliant |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Length | 91.44mm |
| Mount | Panel, Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.366inch |
| Plating | Nickel |
| Polarized | Yes |
| Preloaded | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.366inch |
| Sealable | No (Without) |
| Series | Quadrax |
| Shape | Rectangular |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1604798-2 Datasheet
Download the complete datasheet for TE Connectivity 1604798-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

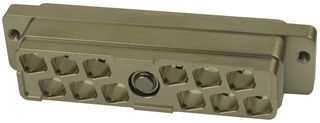

Product Images
