Male ground contact pin for cable mounting, featuring a straight orientation and round contact shape. Constructed from copper alloy with tin plating, this component supports a 13A current rating and is designed for 16-18AWG wire gauges. Operating within a temperature range of -55°C to 125°C, it offers a 2.5mm insulation diameter and a 2.54mm pitch. This RoHS compliant assembly tool is supplied as loose pieces in a package quantity of 200.
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 164164-1 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Shape | Round |
| Contact Type | Ground |
| Current Rating | 13A |
| ELV | Compliant |
| Gender | Male |
| Insulation Diameter | 2.5mm |
| Lead Free | Not Applicable |
| Length | 27.56mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Loose Piece |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Multimate III+ |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 164164-1 Datasheet
Download the complete datasheet for TE Connectivity 164164-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

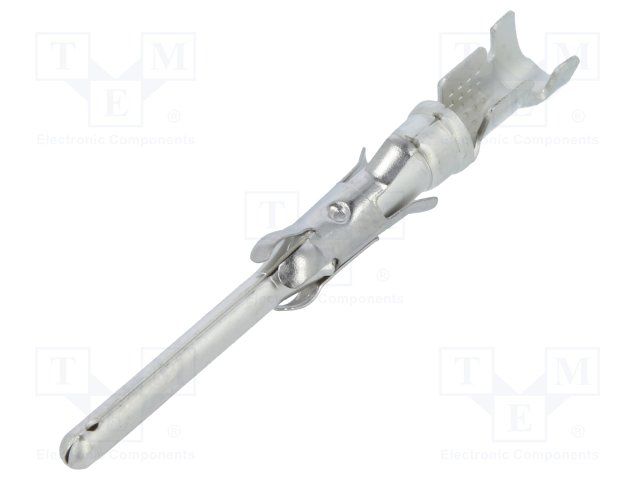

Product Images
