PIDG insulated wire pin terminal for 22-16 AWG wire. Features a straight, male configuration with a copper body plated in tin. The nylon insulation is red, accommodating an insulation diameter of 0.14 inches. This crimp-style terminal offers insulated wire support and is RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 165142 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Red, Grey |
| Contact Material | Copper, Tin |
| Contact Plating | Tin |
| ELV | Compliant |
| Gender | Male |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.14inch |
| Insulation Material | Nylon |
| Lead Free | Not Applicable |
| Lead Length | 6.7mm |
| Length | 0.8inch |
| Material | Copper, Tin, Nylon |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Box |
| Pin Diameter | 1.8mm |
| Pin Length | 6.7mm |
| Plating | Copper |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIDG |
| Shrouded | No (Without) |
| Terminal Material | Copper |
| Termination | Crimp |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 165142 Datasheet
Download the complete datasheet for TE Connectivity 165142 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

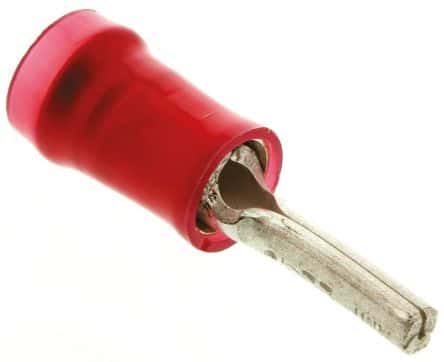

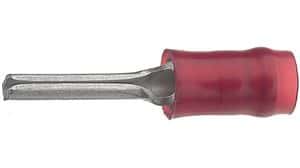

Product Images
