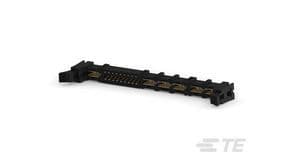

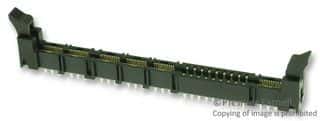

30 Pos Gold Female Edge Connector, 25A, 250V, Through Hole

TE Connectivity

1651929-1

Name: 1651929-1 TE Connectivity
Brand: TE Connectivity
SKU: 1651929-1

30 Pos Gold Female Edge Connector, 25A, 250V, Through Hole

30-position, 2-row female edge connector for board-to-board applications. Features a 2.5mm pitch and 12 power positions with 18 signal positions. Rated for 25A and 250V AC, with gold and tin plated copper alloy contacts. Through-hole mount design with straight orientation, suitable for 1.57mm card thickness and 2.36mm PCB thickness. UL94 V-0 flammability rating and RoHS compliant.

Voltage Rating250V

Current Rating25A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 1651929-1 technical specifications.

General

Approvals	CSA
Card Thickness	1.57mm
Circuit Application	Power
Color	Black
Connector System	Board-to-Board
Contact Current Rating	25A
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Current Rating	25A
Depth	20mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	20mm
Housing Color	Black
Insulation Material	Glass
Length	114.96mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	30
Number of Positions	30
Number of Power Positions	12
Number of Rows	2
Number of Signal Positions	18
Orientation	Straight
Package Quantity	32
Packaging	Box
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	2.36mm
Pitch	2.5mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	3.33mm
Series	Mini Crown Edge, Elcon
Termination	Solder
Voltage Rating	250V
Width	0.3555inch
