Female receptacle assembly for discrete wire termination. Features brass body with tin plating and nylon insulation in blue. Accepts wire gauges from 13AWG to 17AWG, with a maximum insulation diameter of 4mm. Contact material includes brass, copper, and silver with tin plating. RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 165429-1 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Color | Blue |
| Contact Gender | Female |
| Contact Material | Brass, Copper, Silver |
| Contact Plating | Tin |
| Depth | 8.1mm |
| ELV | Compliant |
| Gender | Male |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Insulated |
| Insulation Color | Blue |
| Insulation Diameter | 4mm |
| Insulation Material | Nylon |
| Lead Free | Not Applicable |
| Length | 24.7mm |
| Manufacturer Series | 165429 |
| Material | Brass |
| Package Quantity | 500 |
| Packaging | Box |
| Plating | Brass |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Shur-Plug |
| Terminal Material | Brass |
| Termination | Plug |
| Wire Gauge (Max) | 17AWG |
| Wire Gauge (Min) | 13AWG |
| Wire/Cable Gauge | 17AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 165429-1 Datasheet
Download the complete datasheet for TE Connectivity 165429-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

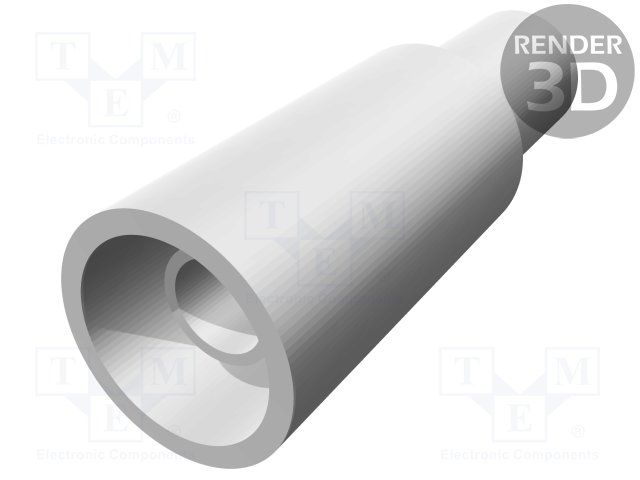

Product Images
