10 Pos 2 Row RA Female Socket, 2.54mm Pitch, Gold, Signal

TE Connectivity

1658527-3

Name: 1658527-3 TE Connectivity
Brand: TE Connectivity
SKU: 1658527-3

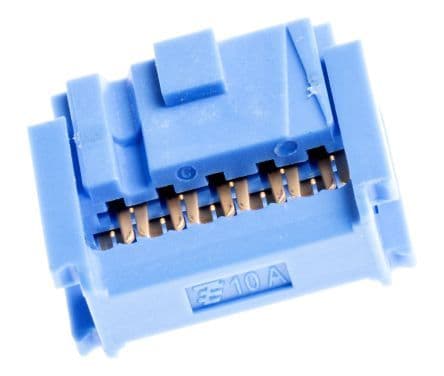

10 Pos 2 Row RA Female Socket, 2.54mm Pitch, Gold, Signal

10-position, 2-row right-angle female socket header for signal applications. Features gold-plated copper contacts, a 2.54mm pitch, and IDT termination for 26-28AWG ribbon wire. Rated for 1A current and operating temperatures from -55°C to 105°C, with a UL94 V-0 flammability rating. This blue, free-hanging, cable-mount connector system is RoHS compliant.

Current Rating1A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1658527-3 technical specifications.

General

Circuit Application	Signal
Color	Blue
Connector System	Wire-to-Board
Contact Material	Copper
Contact Plating	Gold
Contact Type	Female Socket
Current Rating	1A
Depth	7.05mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Housing Color	Blue
Length	17.2mm
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Free Hanging, Cable
Number of Contacts	10
Number of Poles	10
Number of Positions	10
Number of Rows	2
Orientation	Right Angle
Package Quantity	50
Packaging	Bulk
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH 622
Termination	IDT
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Type	Ribbon
