16-position, 2-row right-angle shrouded header receptacle with a 2.54mm pitch. Features gold-plated copper female socket contacts and blue housing. Designed for ribbon cable mounting via Insulation Displacement Termination (IDT) for wire gauges 26-28AWG. RoHS compliant.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658527-6 technical specifications.
General
| Color | Blue |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Type | Female Socket |
| Depth | 7.05mm |
| ELV | Compliant |
| Gender | Female |
| Housing Color | Blue |
| Lead Free | Lead Free |
| Length | 24.82mm |
| Mount | Free Hanging, Cable |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | 622 |
| Termination | IDT |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 26AWG |
| Wire/Cable Type | Ribbon |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1658527-6 Datasheet
Download the complete datasheet for TE Connectivity 1658527-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

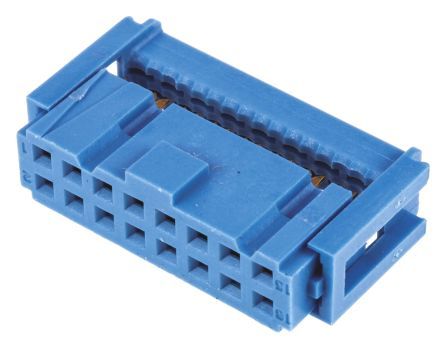

Product Images
