This male crimp terminal, designed for signal applications, features a brass contact material with gold and tin plating for enhanced conductivity and durability. It supports wire gauges from 28AWG to 24AWG, with a maximum operating temperature of 105°C and a minimum of -55°C. The straight, unshielded terminal has a depth of 2.16mm, length of 14.86mm, and an insulation diameter of 1.02mm, operating at a maximum supply voltage of 250V AC. Packaged in a strip of 10,000 units, this RoHS compliant component is suitable for cable mounting.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 1658540-4 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Contact Style | Crimp |
| Contact Type | Signal |
| Depth | 2.16mm |
| ELV | Compliant |
| Gender | Male |
| Insulation Diameter | 1.02mm |
| Lead Free | Not Applicable |
| Length | 14.86mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 250V |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 10000 |
| Packaging | Strip |
| Plating Thickness | 0.76um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-20 |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 28AWG |
| Wire/Cable Gauge | 28AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1658540-4 Datasheet
Download the complete datasheet for TE Connectivity 1658540-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

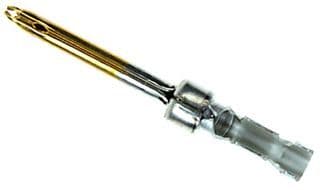

Product Images
