Shielded, right-angle D-subminiature receptacle connector featuring 25 female signal contacts on 2 rows with a 2.77mm pitch. This free-hanging, cable mount component offers IDC termination for ribbon wire (26-28 AWG) and a current rating of 1.25A at 250V AC. Constructed with a steel shell and bronze contacts plated in gold and tin, it operates within a temperature range of -55°C to 105°C and boasts UL94 V-0 flammability rating. Approvals include UL and CSA, with RoHS compliance.
Voltage Rating250V
Current Rating1.25A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658610-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal, Steel
Body/Shell Style
RECEPTACLE
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
1.25A
Depth
12.59mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
53.09mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Rail/Tube
Pitch
2.77mm
Plating
Bright, Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HDF-20
Shell Material
Steel
Shell Size
3
Shielding
Shielded
Termination
IDC
Voltage Rating
250V
Width
18.61mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Diameter
0.97mm
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1658610-2 Datasheet
Download the complete datasheet for TE Connectivity 1658610-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

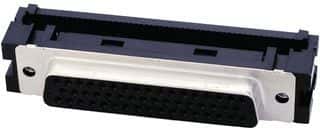

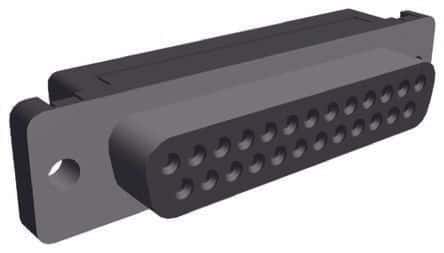

Product Images
