Shielded, right-angle D-Subminiature receptacle with 9 positions and 2 rows. Features IDC termination for ribbon wire, accepting 26-28 AWG wire gauges. Gold and tin plated bronze contacts ensure reliable signal transmission with a 1.25A current rating and 250V AC voltage rating. Metal body and shell construction with a black housing, compliant with RoHS and UL94 V-0 flammability. Designed for free-hanging, cable mount applications.
PackageMetal
Voltage Rating250V
Current Rating1.25A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658612-4 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Body/Shell Style
RECEPTACLE
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
1.25A
Depth
12.59mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
30.88mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Rail/Tube
Pitch
2.77mm
Plating
Bright, Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HDF-20
Shell Material
Steel
Shell Size
2
Shielding
Shielded
Termination
IDC
Voltage Rating
250V
Width
18.61mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Diameter
0.97mm
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1658612-4 Datasheet
Download the complete datasheet for TE Connectivity 1658612-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

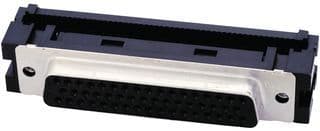

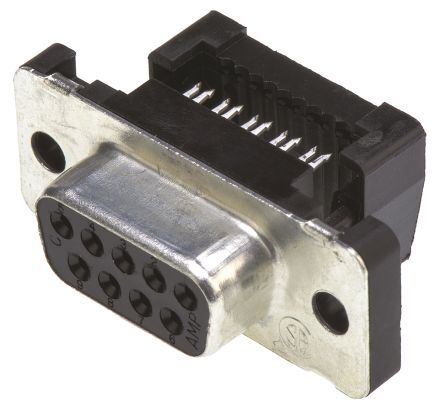

Product Images
