Shielded, right-angle D-Subminiature connector with 25 male signal contacts on 2 rows, featuring IDC termination for 26-28 AWG ribbon cable. This free-hanging, cable mount connector offers a 1.25A current rating and 30V voltage rating, with a steel shell plated in tin. Operating temperature range is -55°C to 105°C, and it is UL94 V-0 flammability rated and RoHS compliant.
Voltage Rating30V
Current Rating1.25A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658613-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Steel
Body Plating
Tin
Color
Black
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Signal
Current Rating
1.25A
Depth
12.59mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
18.57mm
Housing Color
Black
Lead Free
Lead Free
Length
53.09mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Current Rating
1.25A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
30V
Max Voltage Rating (AC)
30V
Mount
Free Hanging, Cable
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Rail/Tube
Pitch
2.77mm
Plating
Bright, Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HDF-20
Shell Material
Steel
Shell Size
3
Shielding
Shielded
Termination
IDC
Voltage Rating
30V
Width
18.57mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Diameter
0.97mm
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1658613-2 Datasheet
Download the complete datasheet for TE Connectivity 1658613-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

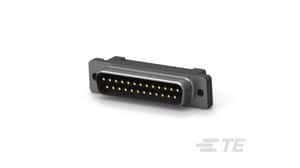

Product Images
