Right-angle, female D-subminiature connector with 9 positions and 2 rows, featuring IDC termination for 26-28 AWG ribbon cable. This shielded connector offers a 1.25A current rating and 250V AC voltage rating, with gold and tin plated bronze contacts. Constructed with a black thermoplastic housing, it is UL94 V-0 flammability rated and compliant with RoHS and ELV standards. Designed for free-hanging, cable mounting, it operates within a temperature range of -55°C to 105°C.
Voltage Rating250V
Current Rating1.25A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658614-4 technical specifications.
General
Approvals
UL, CSA
Body Material
Plastic
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
1.25A
Depth
18.61mm
Dielectric Material
Thermoplastic
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
12.59mm
Housing Color
Black
Lead Free
Lead Free
Length
30.88mm
Material
Plastic
Mating Connector Lock
Yes (With)
Max Current Rating
1.25A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Rail/Tube
Pitch
2.77mm
Plating
Thermoplastic
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HDF-20
Shell Material
Thermoplastic
Shell Size
1
Shielding
Shielded
Termination
IDC
Voltage Rating
250V
Width
12.59mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
26AWG
Wire/Cable Diameter
0.97mm
Wire/Cable Type
Ribbon
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1658614-4 Datasheet
Download the complete datasheet for TE Connectivity 1658614-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

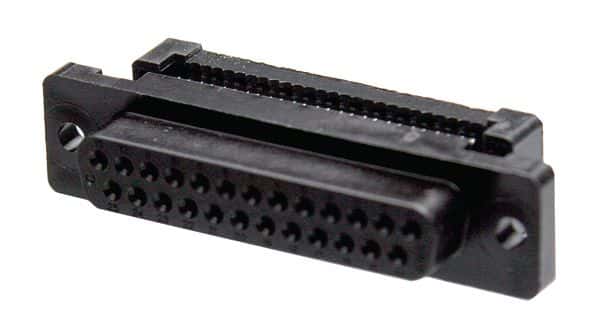

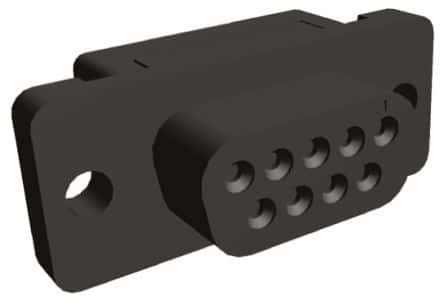

Product Images
