1658615-3

Datasheet

D-Subminiature Connector, 15 Pos, Male, RA, IDC, Shielded, 250V

TE Connectivity

1658615-3

Name: 1658615-3 TE Connectivity
Brand: TE Connectivity
SKU: 1658615-3

Active

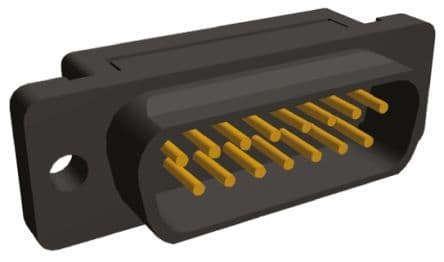

D-Subminiature Connector, 15 Pos, Male, RA, IDC, Shielded, 250V

Shielded, right-angle D-Subminiature connector with 15 male signal contacts on a 2.77mm pitch. Features gold and tin plated bronze contacts, a plastic body, and a thermoplastic dielectric. Rated for 250V AC and 1.25A, with an operating temperature range of -55°C to 105°C. Designed for cable mounting with IDC termination for ribbon cable, supporting wire gauges from 26 to 28 AWG. UL and CSA approved, RoHS compliant, and UL94 V-0 flammability rated.

Voltage Rating250V

Current Rating1.25A

MountingFree Hanging, Cable

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Approvals	UL, CSA
Body Material	Plastic
Color	Black
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Type	Signal
Current Rating	1.25A
Depth	12.59mm
Dielectric Material	Thermoplastic
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	39.14mm
Material	Plastic
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	15
Number of Ports	1
Number of Positions	15
Number of Rows	2
Orientation	Right Angle
Package Quantity	40
Packaging	Rail/Tube
Pitch	2.77mm
Plating	Thermoplastic
Preloaded	Yes
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AMPLIMITE HDF-20
Shell Material	Plastic
Shell Size	2
Shielding	Shielded
Termination	IDC
Voltage Rating	250V
Width	18.56mm
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Diameter	0.97mm
Wire/Cable Type	Ribbon
