TE CONNECTIVITY

1658615-4

Datasheet

9 Pos D-Sub Connector, Shielded, Right Angle, IDC, 250V

TE Connectivity

1658615-4

Name: 1658615-4 TE Connectivity
Brand: TE Connectivity
SKU: 1658615-4

9 Pos D-Sub Connector, Shielded, Right Angle, IDC, 250V

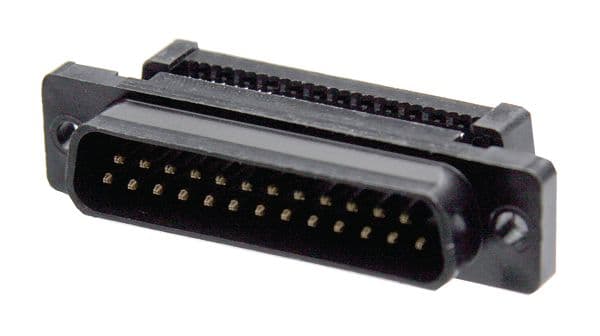

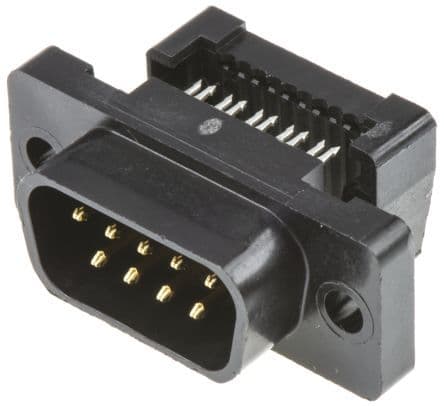

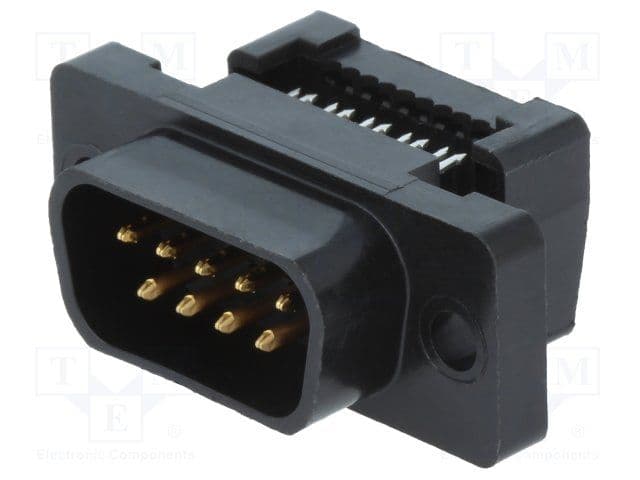

9-position, 2-row, right-angle D-subminiature plug connector with IDC termination. Features gold and tin plated bronze signal contacts, a black plastic housing, and a shielded shell. Rated for 1.25A current and 250V AC, operating between -55°C and 105°C. UL and CSA approved, RoHS compliant, and lead-free. Designed for cable mounting with a 2.77mm pitch and accepts 26-28AWG ribbon wire.

Voltage Rating250V

Current Rating1.25A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1658615-4 technical specifications.

General

Approvals	UL, CSA
Body Material	Plastic
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Type	Signal
Current Rating	1.25A
Depth	12.59mm
Dielectric Material	Thermoplastic
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	30.88mm
Material	Plastic
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	9
Number of Ports	1
Number of Positions	9
Number of Rows	2
Orientation	Right Angle
Package Quantity	40
Packaging	Rail/Tube
Pitch	2.77mm
Plating	Thermoplastic
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HDF-20
Shell Material	Plastic
Shell Size	1
Shielding	Shielded
Termination	IDC
Voltage Rating	250V
Width	18.56mm
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Diameter	0.97mm
Wire/Cable Type	Ribbon
