TE CONNECTIVITY

1658620-1

Datasheet

10 Pos Receptacle, 2.54mm Pitch, Right Angle, 1A, 250V

TE Connectivity

1658620-1

Name: 1658620-1 TE Connectivity
Brand: TE Connectivity
SKU: 1658620-1

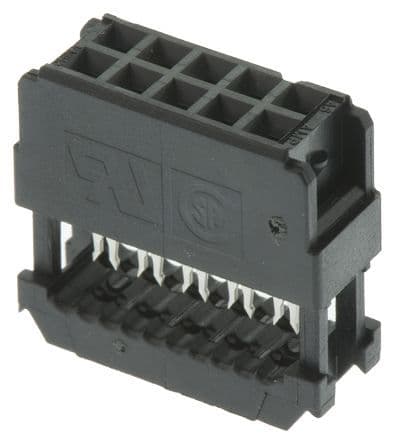

10 Pos Receptacle, 2.54mm Pitch, Right Angle, 1A, 250V

10-position, 2-row female receptacle for signal applications. Features a 2.54mm pitch and right-angle orientation, designed for wire-to-board connectivity. Contact material is bronze with gold and tin plating, rated for 1A current and 250V AC voltage. Housing is black, UL94 V-0 flammability rated, and operates within a -65°C to 105°C temperature range. Termination is solder, suitable for 26-28AWG ribbon wire.

Voltage Rating250V

Current Rating1A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 1658620-1 technical specifications.

General

Approvals	UL
Board Standoff	No (Without)
Circuit Application	Signal
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Type	Forked
Current Rating	1A
Depth	6.09mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	15.16mm
Housing Color	Black
Insulation Diameter	0.037inch
Lead Free	Lead Free
Length	17.27mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Operating Supply Voltage	250V
Orientation	Right Angle
Package Quantity	60
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Plating Thickness	1.27um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH NOVO
Shrouded	No (Without)
Termination	Solder
Voltage Rating	250V
Width	6.1mm
Wire Gauge (Max)	28AWG
Wire Gauge (Min)	26AWG
Wire/Cable Type	Ribbon
