9-position, 2-row male D-subminiature connector with straight, cable mount orientation. Features a metal shell and body, black housing, and tin plating. Designed for crimp termination with a 1.37mm contact pitch. Operating temperature range of -55°C to 105°C. UL and CSA approved, RoHS compliant, and UL94 V-0 flammability rated.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1658642-1 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Type | Signal |
| Depth | 17.7mm |
| Dielectric Material | Thermoplastic |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 12.54mm |
| Housing Color | Black |
| Length | 30.81mm |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 800 |
| Packaging | Bulk |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-20 |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Crimp |
| Width | 12.54mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1658642-1 Datasheet
Download the complete datasheet for TE Connectivity 1658642-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

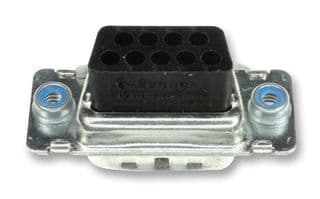

Product Images
