High-density D-Subminiature connector, male, 78 positions, 4 rows, straight orientation, free-hanging mount. Features a black metal housing and shell, with tin-plated signal contacts. Rated for 250V AC, operating temperature range of -55°C to 105°C. UL and CSA approved, RoHS compliant, and UL94 V-0 flammability rating.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 1658674-1 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Type | Signal |
| Depth | 17.8mm |
| Dielectric Material | Nylon |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 66.95mm |
| Material | Metal |
| Mating Connector Lock | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging |
| Number of Contacts | 78 |
| Number of Positions | 78 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 225 |
| Packaging | Bulk |
| Plating | Tin |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-22 |
| Shell Material | Steel |
| Shell Size | 5 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Width | 15.36mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1658674-1 Datasheet
Download the complete datasheet for TE Connectivity 1658674-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

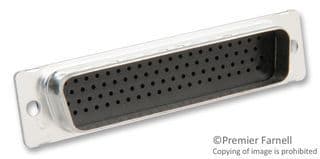

Product Images
