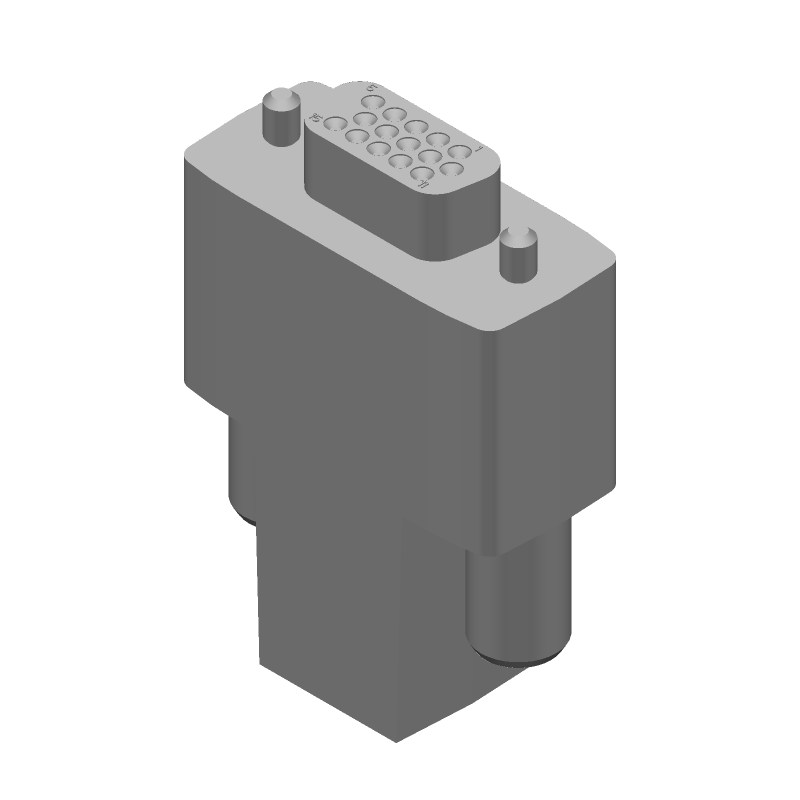

Shielded, straight-orientation D-Subminiature receptacle connector featuring 15 signal contacts across 3 rows. This free-hanging, cable-mount component has a metal body and shell, with a black housing and Nylon dielectric. Rated for UL94 V-0 flammability and operating temperatures from -55°C to 105°C, it includes a mating connector lock and Tin plating.
PackageMetal
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1658688-1 technical specifications.
General
| Approvals | UL |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Type | Signal |
| Dielectric Material | Nylon |
| ELV | Compliant |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 34.41mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-22 |
| Shell Material | Steel |
| Shell Size | 1 |
| Shielding | Shielded |
| Termination | Crimp |
| Width | 34.4mm |
| Wire/Cable Diameter | 0.375inch |
