Female signal contact, crimp style, for AMPLIMITE® HDP-20 series. Features bronze contact material with gold and tin plating, 0.76um plating thickness. Designed for straight orientation, cable mounting, and accepts wire gauges from 20AWG to 24AWG with an insulation diameter of 0.06 inches. RoHS compliant and ELV compliant. Supplied in loose piece packaging, with a package quantity of 1000.
Package100
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 166291-1 technical specifications.
General
Package/Case
100
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Style
Crimp
Contact Type
Signal
Depth
2.2mm
ELV
Compliant
Gender
Female
Height
2.2mm
Insulation Diameter
0.06inch
Lead Free
Lead Free
Length
14.4mm
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating Thickness
0.76um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE® HDP-20
Shielding
Unshielded
Termination
Crimp
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 166291-1 Datasheet
Download the complete datasheet for TE Connectivity 166291-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

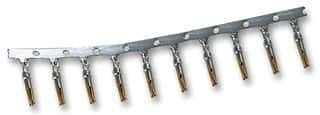

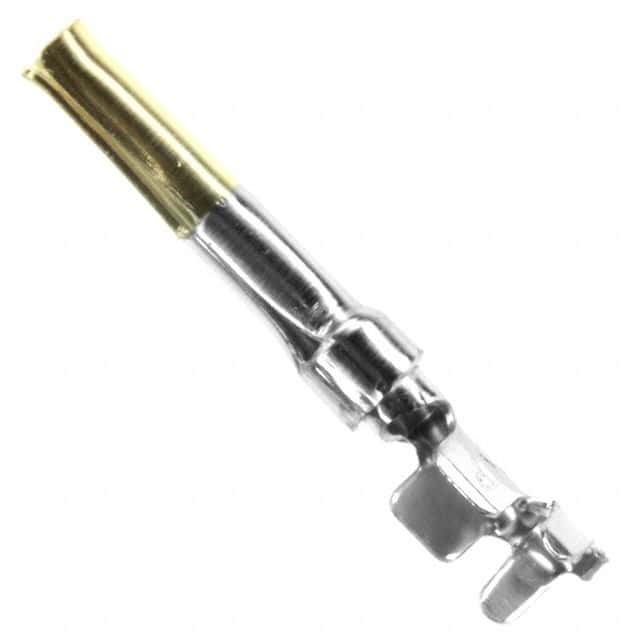

Product Images
