Male power contact for cable mounting, featuring a straight orientation and crimp termination. Constructed from brass with gold and tin plating, this component supports wire gauges from 24AWG to 28AWG with a maximum insulation diameter of 1.02mm. Operating temperature range is -55°C to 105°C, with a plating thickness of 0.76um. This RoHS compliant component is supplied as loose pieces in a package quantity of 500.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 166294-1 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Contact Style | Crimp |
| Contact Type | Power |
| Depth | 2.2mm |
| Gender | Male |
| Height | 2.2mm |
| Insulation Diameter | 1.02mm |
| Length | 14.6mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating Thickness | 0.76um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE® HDP-20 |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Diameter | 1.02mm |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 166294-1 Datasheet
Download the complete datasheet for TE Connectivity 166294-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

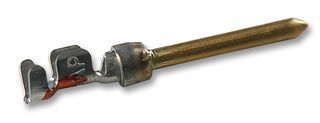

Product Images
