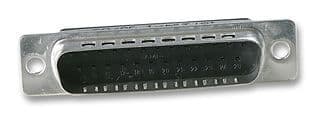

25-position, 2-row straight male D-Subminiature connector for cable mounting. Features a steel shell with tin plating and a black nylon dielectric. Rated for 2.4A current and operates between -55°C and 105°C. Crimp termination supports wire/cable diameters up to 1.73mm. Includes mating connector lock and UL94 V-0 flammability rating.
Sign in to ask questions about the TE Connectivity 167294-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 167294-1 technical specifications.
| Body Material | Steel, Metal |
| Color | Black |
| Contact Type | Signal |
| Current Rating | 2.4A |
| Depth | 17.6mm |
| Dielectric Material | Nylon |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 41.3mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Number of Contacts | 25 |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Box |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-20 |
| Shell Material | Steel |
| Termination | Crimp |
| Width | 12.55mm |
| Wire/Cable Diameter | 1.73mm |
| RoHS | Compliant |
